Excellence in real time DVB-SI Managment and SSU Broadcast Solutions
Contact Us

IBX

IBL
ONA platform for capturing, generating, modifying and inserting MPEG-SI, DVB-SI, ATSC PSIP, EPG and DSM-CC data in to MPEG streams. The foundation of the platform is the IBX 600 1U rack-mounted chassis with minimal software that allows the transmission of PAT, PMT, TOT and TDT. Rarely used alone, the IBX-600 is normally combined with additional modules on the same server. The result is a configurable and scalable solution that can be used to meet a wide range of complex requirements. ONThe system level software resident in memory of consumer premises devices such as STBs will require update at some point during its lifecycle. Many standards have emerged which allow manufacturers to deploy devices in numerous geographic regions. The intellibyte solution includes components for the creation of Transport Stream (TS) files from the binary software image ("IBL-Tools"), a Data Broadcast Carousel ("IBX-620") to transmit the TS data files and a source code library stack ("IBL") to decrease a manufacturers' time to market.

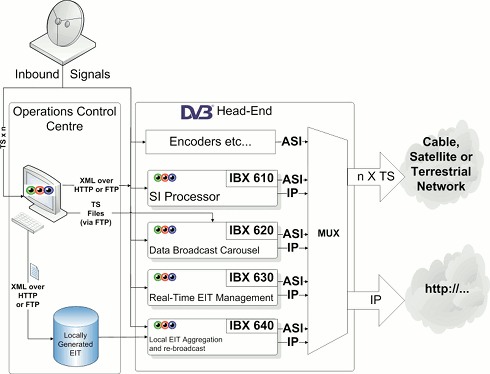

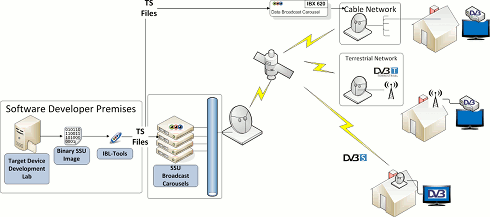

IBX diagram IBL diagram
